Trailex Storage Racks
Trailer Conversion Rack Kit
For Canoes & Kayaks
Stationary, Wall, and Roll a Round Storage
Racks for
Canoes, Kayaks, Surfboards, and Sailboard
Converts Existing Trailers to Canoe or Kayak Trailer
|
|
Trailex Ultralight Aluminum Racks
and Trailer Kits come with a One Year Limited Warranty. Almost 50%
lighter than steel racks and they Never Rust |
All Aluminum, All Bolted Construction, All
Adjustable
Trailex Model TR-801 Rack with Rolling Caster Option
(canoe, kayaks not included)
 |
|
 |
| TR-801 Stationary Rack is supported by 4 Outrigger Feet |
|
Stationary Rack Foot
Sliding Web Clip
on Each Arm |
Trailex Model TR-801 Rack with Rolling Caster Option
Vinyl Padding is Standard on All Crossbars
The Rack can Accommodate Eight Canoes or Sixteen Kayaks, if Put on Edge
 |
|
 |
|
Locking Swivel Casters |
|
Racks with Casters add
Two (2) 84" Cross braces
|

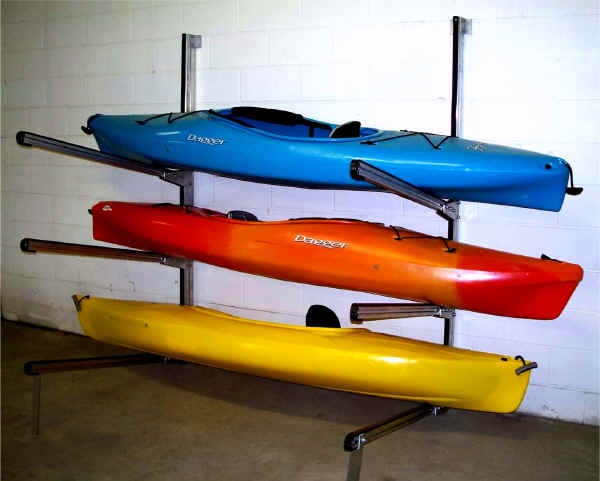

Model WR-6A Wall Mounted Rack will Hold Three Canoes or Six Kayaks, on Edge
Rack Arms may be Spaced on the Wall to Any Distance. Support Arms Can Be
Adjusted to Any Height
(Floor Brace Used for Photographic Purposes Only. Not
Required or Included with Storage Rack)
(Kayaks not included)

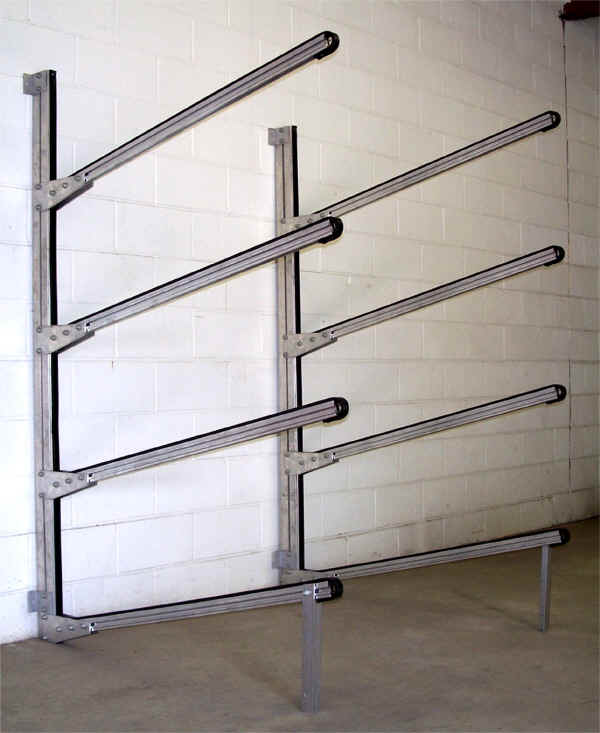

Model WR-8A Wall Mounted Rack will Store up to Four Canoes, or Eight Kayaks,
on Edge
Note the Heavy Duty Vinyl Padding on the Arms and Uprights.
Fully Adjustable in All Spacing and Heights
(Floor Brace Used for Photographic Purposes Only. Not
Required or Included with Storage Rack)
|
|
|
Wall Mount Racks Have
Sliding Brackets which Allow You
To Place Fasteners Where They Are Most Convenient. |
PRICES --
|
Canoe
&
Kayak
Storage Racks
|
Price
|
Shipping
48 USA
|
|
|
|
|
|
|
WR-6A
|
Wall Mount - 3 Canoes or 6 Kayaks
|
651.00 |
+ 89.95 S&H |
|
WR-8A
|
Wall Mount - 4 Canoes or 8 Kayaks
|
791.00 |
+ 99.95 S&H |
| TR-801 |
Double Tree - 8 Canoes or Multi Kayaks Rack - Stationary
( See Additional Option Features) |
1168.00 |
+ 119.95 S&H |
| TR-801-CR |
Double Tree - 8 Canoes or Multi Kayaks Rack - With Rolling
Casters ( See Note **) |
1599.00 |
+ 149.95 S&H |
|
TR-801 Optional Extra Equipment |
|
|
|
|
| TRM-KIT |
Trailer Mounting Kit - SEE NOTE* |
299.95 |
| 30TPAK |
Package of 30 Extra T Bolts and Nuts |
29.95 |
| FWSC |
Package of Four (4) Extra Web Strap Clips
( For Attaching Strap End Hooks) |
19.95 |
TR-801 Double Tree Rack comes with 24 Web strap
Clips Included Standard.
The WR-6A and WR-8A Wall Racks do not include any
Web Strap Clips.
| * TRM-KIT Trailer Mounting Kit Consists of Two
84" Wide Cross Bar Sections and Brackets.
These Cross Bars can Slide anywhere along the length of the Bottom Rack
Longitudinal
Member. This allows easy Spacing adjustment on your Trailer Bed. Due
to the Wide
Variety of Trailers, this Kit DOES NOT INCLUDE attachment Hardware to your
Trailer. However, Common Brackets and Attachments can be Found in
Hardware and
Automotive Parts Stores. The Cross Bars allow this Kit to Fit Frame Trailers up
to 84" Wide - Excess width can be cut down by the installer. Installing this Kit
Does Require A
Fair Amount of Mechanical Knowledge. |
** TR-801-CR Rack with Rolling Casters includes the TRM-KIT
(Trailer Mounting Kit Option)

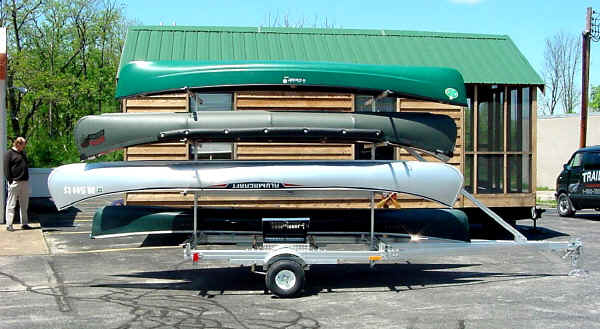

Model TR-801 Eight Canoe Rack installed on Trailex Trailer with
Optional Kit
(canoes, trailer frame, box, and display stand not included)
Model TR-801 Eight Canoe Rack installed on Trailex Flatbed Trailer with
Optional Kit
(canoes, kayaks, trailer frame, and parking jack not included)
|
What Kind of Trailer Can this Rack be Installed On?
Using the Trailer Mounting Kit allows you to adapt the Storage Rack to a
Fishing Boat Trailer, Utility Trailer, Flat Bed Trailer, and other Style
Trailers. This allows you the versatility of removing the Rack and Still
use your Trailer for Other Purposes.
You will need to Consider the Following:
A. Weight
Capacity - The Trailer needs to have sufficient Weight
Capacity. The TR-801 Rack is 100 lb, The TRM-KIT adds 30
lbs. Adding the Weight of Boats and Gear gives you the minimum
needed Weight Capacity:
EXAMPLE: 8 Canoes @ 80 lb each = 640 lb + 130 lb for the Rack
& Kit = 770 lb. The Minimum Weight Capacity Rating
of the Trailer would have to be 770 lb or more.
B. Width - On
a Frame Style Fishing Boat Trailer, the Frame has to be 84" or less
, outside to outside. Flat Bed and Utility trailers can be wider
than 84", if you can fasten the cross members to the frame under
the decking.
C. Length -The
Trailer needs to be long enough to handle the length of the Boats you
plan to Transport. Most States allow an Overhang of up to 4 Feet,
before requiring Flags or Lights on the ends. Check your
Local Regulations.
|
 |
|
 |
TRM-KIT Trailer Mounting Kit includes
Two Sliding 84" Long Crossbars
Which Can Adjust to Fit Many Trailers |
|
Typical Installation on a
Flatbed Utility Trailer
Sliding Crossbars allow Spacing
Around Fenders and Other Trailer Features |
|
-
Patented T-Bolt Construction
-
Fully Adjustable
-
Heads of bolts slide to any position.
-
Requires only one wrench to tighten
-
Lock nuts on all bolts
-
Strong & lightweight
|
 |
|
