Trailex Box Style Storage Racks
Outline Dimensions
Stationary and Roll a Round Storage Racks for
Sailboats,
Row Boats, Pedal and Paddle Boats.
|
|
Trailex Ultra-Light Aluminum Racks
and Trailer Kits come with a One Year Limited Warranty. Almost 50%
lighter than steel racks and they Never Rust |
|
Architects and Engineers - We can
provide you with High Resolution Drawings - Contact
Us |

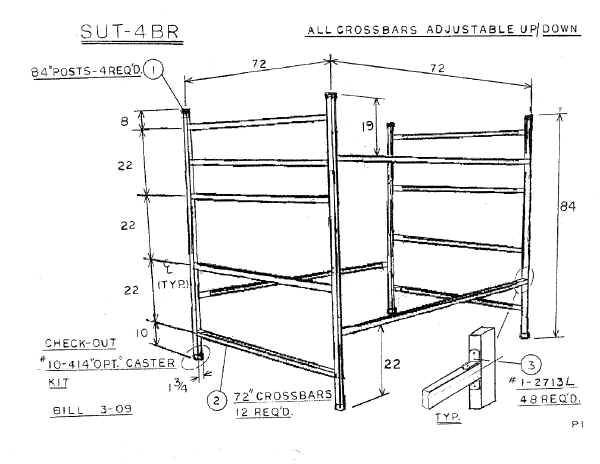

Trailex SUT-4BR Box style rack will hold Four (4) Sailboats, Row Boats
or it can be adjusted for Three (3) Pedal Boats
Overall Height is 84", Adding the Caster Kit
increases Height to 90"

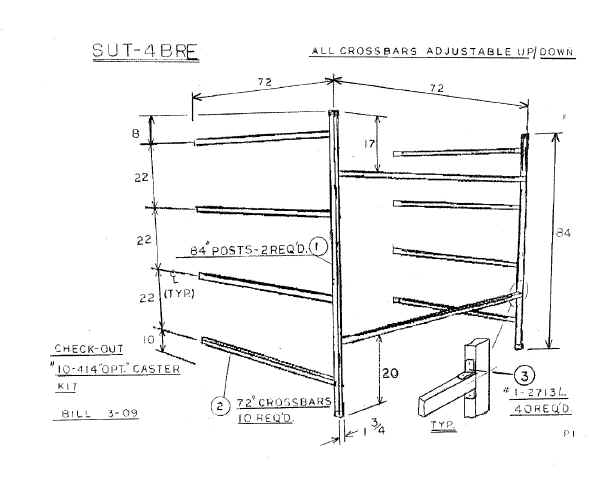

| Trailex SUT-4BRE Extension Module Box Style Rack Allows
you to "Daisy Chain" Racks. This method reduces Cost and
lets you configure Large Boat Storage Rack Systems for Multiple
Sailboats, Row Boats and Pedal Boats. Fully Adjustable - You can
mix and Match different Boats of various styles and sizes. |

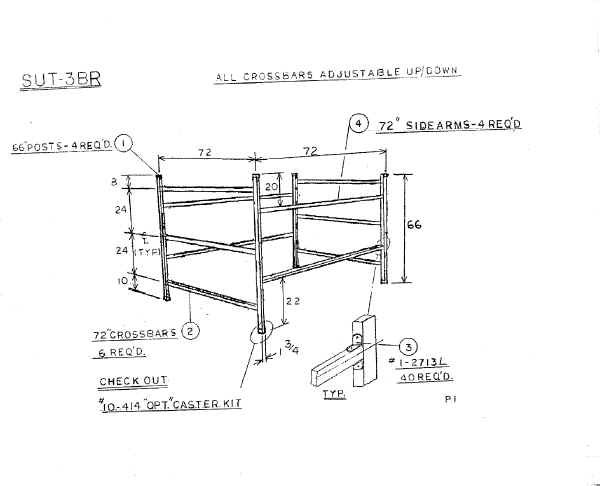

Trailex SUT-3BR Box style rack will hold Three (3) Sailboats, Rowboats
or it can be adjusted for two (2) Paddle Boats
Overall Height is 66", Adding the Caster Kit
increases Height to 72"

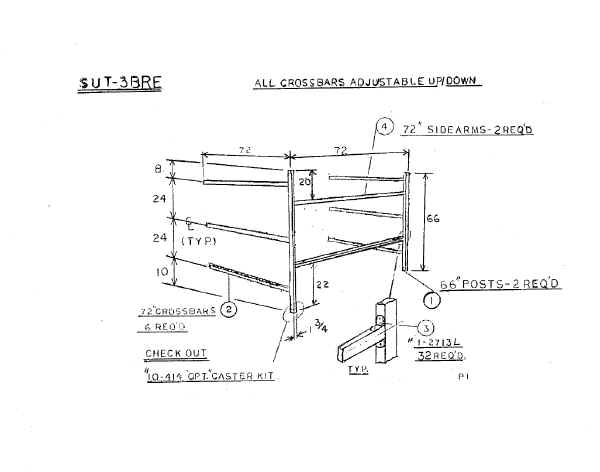

| Trailex SUT-3BRE Extension Module Box Style Rack Allows
you to "Daisy Chain" Racks. This method reduces Cost and
lets you configure Large Boat Storage Rack Systems for Multiple
Sail boats, Rowboats and Paddle Boats. Fully Adjustable -
You can mix and Match different Boats of various styles and
sizes. |

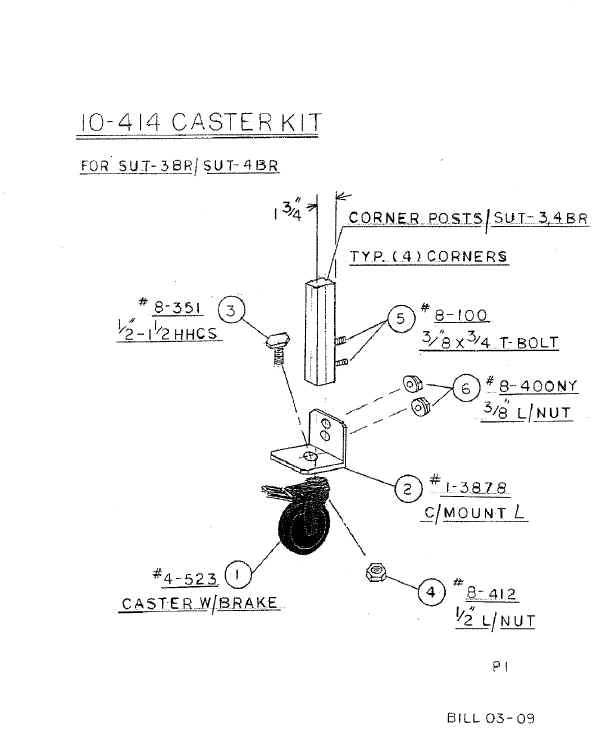

Caster Kits Install on Box Style Racks without any Drilling.
Anchor Brackets Attach to the Box Style Racks without any Drilling.
Use these Aluminum L Brackets to secure racks to floors, docks or concrete
pads

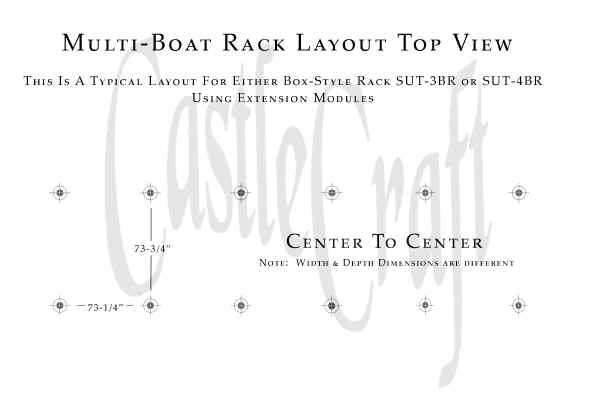

Top View Center to Center Post Layout for both the SUT-3BR
and the SUT-4BR Box Style Racks. Note that Width and Depth
Dimensions are different.
(Outside to outside Rack dimensions are 74-1/2" Wide and
75-1/2" deep) |
All Of The Trailex Racks Can Be Easily Resized. Using
A Simple Hacksaw, You Can Cut Down The Size Of Any Member, To Make The Rack
Smaller. The Unique T-Bolt Construction Allows You To Slide The Parts To
Any Spacing Or Position.
|
-
Patented T-Bolt Construction
-
Fully Adjustable
-
Heads of bolts slide to any position.
-
Requires only one wrench to tighten
-
Lock nuts on all bolts
-
Strong & lightweight
|
 |
|
