Small Boat Trailer
For Jon boats, Flat Bottom and Semi Vee Boats and Sailboats

Trailex Ultra-Light Aluminum Trailers come with  a One Year Limited Warranty.  Almost 50% lighter than steel trailers and they Never Rust



FREE SHIPPING ON TRAILEX SUT SERIES TRAILERS*
*within the 48 USA


Trailex Model SUT-500-S Trailer


Trailex Model SUT-500S trailer
Wide 6" bunks provide maximum hull support and adjust to fit the contour of your hull



The SUT-500-S Trailer will fit Boats up to 500 lbs

All Aluminum, All Bolted Construction, All Adjustable

Model SUT-500-S  has epoxy coated leaf springs, giving it a carrying capacity of up to 500 lbs.  This trailer can be shipped via UPS, and is easily assembled using only simple tools.  Since the SUT-500-S Trailer is made of aluminum, it is maintenance-free in addition to being strong and lightweight.



2149.00 + FREE Shipping (48 USA)

Scroll Down the Page  for Details , Available Options Pricing  and Action Videos







View All Trailer Prices
  <CLICK HERE>





SPECIAL OFFER
(offer only valid when ordered with trailer)
Sorry, Offer Does Not Apply to Prior Sales + Limited Time Offer

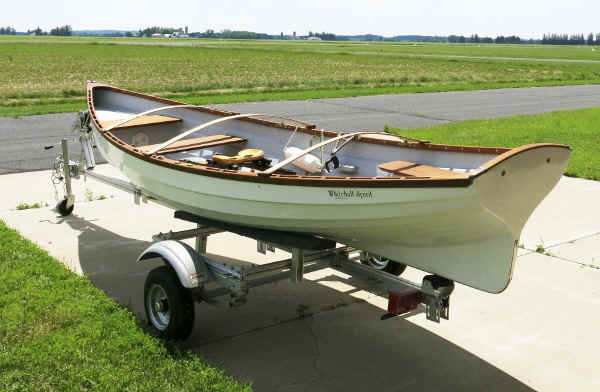

Trailex SUT-500-S Carries A Large Variety Of Boats Up To A 500 lb Capacity
Whitehall Skiff Shown
(shown with optional front parking jack)




Trailex SUT-500-S Carries A Large Variety Of Boats Up To A 500 lb Capacity
Whitehall Skiff Shown

(shown with optional spare tire and spare tire carrier)

View All Trailer Prices
  <CLICK HERE>







SUT-500-S
Specifications

     Standard Equipment

Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical:

500 lbs
130 lbs
15'-4"
72"
16" High
1-7/8"
Flat 4 prong

  • Submersible Taillights

  • Safety Chain

  • 48" Padded Bunks

  • Adjustable Bow Stop

  • Lift Handle with Vinyl Caps

  • High Impact Plastic Fenders

  • High Speed Demountable Galvanized Wheels & Tires

  • Adjustable Undercarriage

  • Three -  6" Rollers

  • Epoxy Coated Springs





SUT-500-S18
Specifications

     Standard Equipment

Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical:

500 lbs
150 lbs
18'-3"
72"
16" High
1-7/8"
Flat 4 prong

  • Submersible Taillights

  • Safety Chain

  • 48" Padded Bunks (2)

  • Front Padded Cradle

  • Adjustable Bow Stop

  • Lift Handle with Vinyl Caps

  • High Impact Plastic Fenders

  • High Speed Demountable Galvanized Wheels & Tires

  • Adjustable Undercarriage

  • Two -  6" Rollers

  • Epoxy Coated Springs





Wheel Size Options
Two wheel and Tire Sizes are available





Standard  is 8.00 X 4.80
  Actual Height is 16"

Large   is 12.00 X 4.80
 Actual Height is 20"









Optional Extra Equipment


SUT-12 12"  Wheel Upgrade (Large 12.00 X 4.80)

198.00

SPGAL Spare Tire  (Standard 8.00 X 4.80)   69.00
SPGAL-12 Spare Tire  (Large 12.00 X 4.80)

  99.00

STC Spare Tire Carrier   59.00
WNC Winch with Strap & Hook 159.00







Additional Options


FCA-1 Custom Front Cradle Assembly  149.00







  Bearing Protection System
  Included on Every Trailer

Sure Lube low pressure bearing lubrication system.  Protects bearings and prevents any seal damage.
Easy to use. A Zerk Fitting is located under the axle's end cap. Removing the end cap allows you to use a
small grease gun to lubricate the bearings.
The new grease pushes the old grease out.





Bunks are Fully Adjustable
Bunks can be Adjusted in Height and Angle, or Spaced Close or Wide



Support Bunks can be Flat

  Angle Bunks to fit Hull Contour

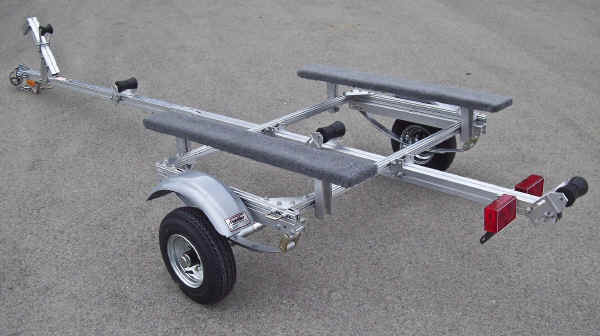

Trailex SUT-500-S Trailer
The Trailex SUT-500-S Trailer Is Fully Adjustable For All Types Of Boats
This Photo Shows The Bunks Adjusted To The Far Rear Of The Trailer







Optional FCA-1 Custom Front Cradle Assembly Provides  Additional Bow Support Adjustment
NOTE: Special Use Only-Not Required for Most Boats



Cradles Adjust To Fit  Many Special Boats Such As the
Force 5, MXRay and Others

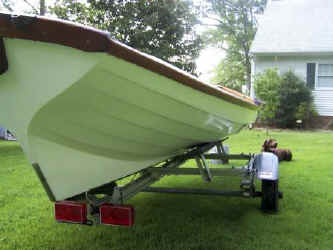

Melon Seed Rowing Skiff on Trailex SUT-500-S Trailer      Melonseed Rowing Skiff on Trailex SUT-500-S Trailer
Front View Of  Melonseed Skiff Rear View of  SUT-500-S Trailer  with Melonseed

16' Melon Seed Rowing Skiff on Trailex SUT-500-S Trailer --Note How Bunks Adjust to Hull Contour

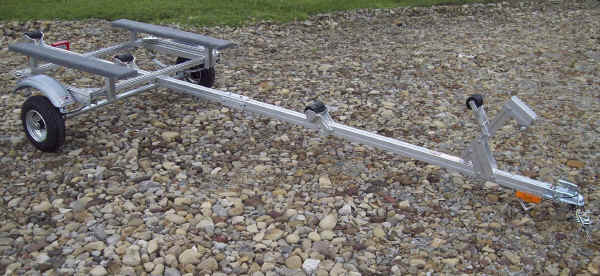

Trailex SUT-500-S Trailer
The Trailex SUT-500-S Trailer Is A Perfect Fit For Boats, Sailboats and Dories
This Photo Shows The Bunks Adjusted For Center Hull Support







SUT-500-S18 Special Features

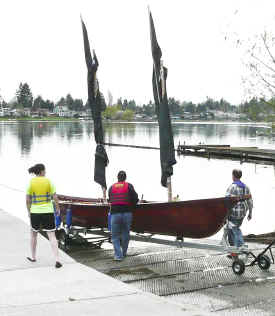

Trailex SUT-500-S18 Trailer for long Sailboats and Boats
The Trailex SUT-500-S18 differs from the SUT-500-S in the following two Specifications

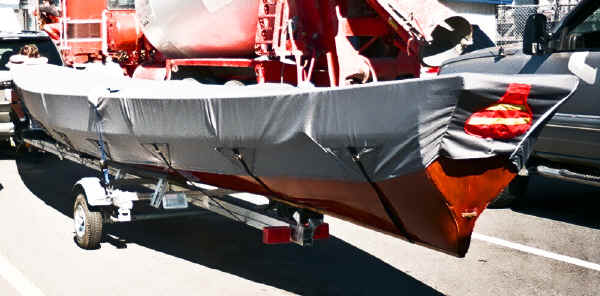

Trailex SUT-500-S18 Trailer for long Sailboats and Boats

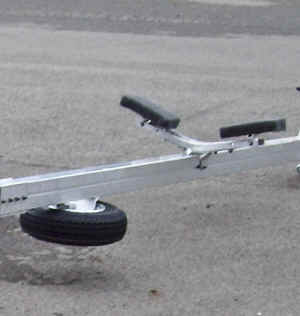

Trailex SUT-500-S18 Front Cradle

Trailex SUT-500-S18 is 18'-3" long, for larger boats up to 21' and 500 lbs



Trailex SUT-500-S18 Adds a Front Padded Cradle in place of one of the Front Rollers






Application Information

 Model SUT-500-S will carry up to an 17'  long Boat or Sailboat
 Model SUT-500-S18 will carry up to an 20'-6"  long Boat or Sailboat
Fits Jon Boats, Flat bottom Boats & Semi Vee Boats up to 500 lbs.


Click Here for Frequently Asked Questions

Trailex Trailer Packaged for UPS Shipment

Typical Trailex Trailer Packaged for FedEx Shipment



Trailex T-bolt

Trailex T-Bolt with nut

  • Patented T-Bolt Construction

  • Fully Adjustable

  • Heads of bolts slide to any position.

  • Requires only one wrench to tighten

  • Lock nuts on all bolts

  • Strong & lightweight

Trailex Extrusion & T-Bolt
