Small Sailboat Trailer
  For  Sunfish,  Snark, Phantom, and other similar sailboats up to 200 lbs

Trailex Ultra-Light Aluminum Trailers come with a One Year Limited Warranty.  Almost 50% lighter than steel trailers and they Never Rust


FREE SHIPPING ON TRAILEX SUT SERIES TRAILERS*
*within the 48 USA



Trailex Model SUT-220-S Trailer

Latest Model Series

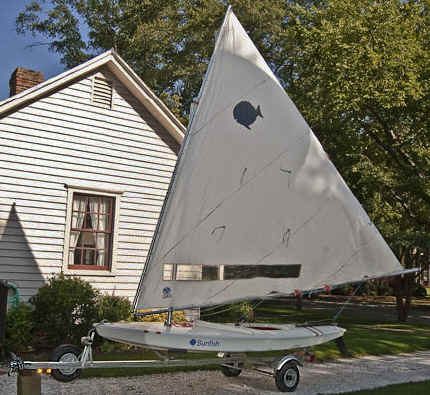

Trailex SUT-200-S Sailboat Trailer with Sunfish

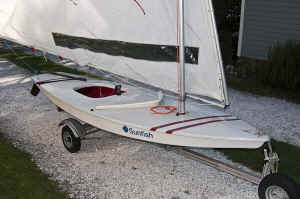

Trailex SUT-220-S Sailboat Trailer with Sunfish
(it is not recommended that sailboats are trailered with masts fully rigged)



SUT-220-S Trailer  is 1799.00 + FREE Shipping (48 USA)
Standard Leaf Assembly & Standard Wheels


View All Trailer Prices
  <CLICK HERE>

Scroll Down the Page  for Details , Available Options Pricing  and Action Videos



View All Trailer Prices
  <CLICK HERE>

+













Watch a Video on the SUT-220-S Features











Trailex SUT-220-S Trailer - SUT-200-S



The SUT-220-S is so light, it is often used also as a launching dolly

All Aluminum, All Bolted Construction, All Adjustable

Model SUT-220-S will transport a single sailboat or boat.  It uses a special tuned suspension to virtually eliminate "Road Bounce" on light sailboats and other small boats. This trailer can be shipped via UPS, and is easily assembled.  Since the SUT-220-S Trailer is made of aluminum, it is maintenance-free in addition to being strong and lightweight. Optional mast carrier sets are available.



View All Trailer Prices
  <CLICK HERE>








Specifications

        Standard Equipment

Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical:

220 lbs
125 lbs
15'-2"
52 "
16" High
1-7/8"
Flat 4 prong

  • Submersible Taillights

  • Safety Chain

  • Padded Cradles on Adjustable Brackets

  • Adjustable Bow Stop

  • High Impact Plastic Fenders

  • Lift Handle with Vinyl Caps

  • High Speed Demountable Galvanized Wheels & Tires

  • Adjustable Undercarriage

  • Rear Loading Roller

  • Web Strap Clips (4)







Optional Extra Equipment


SUT-12 12"  Wheel Upgrade (Large 12.00 X 4.80)

198.00

SPGAL Spare Tire  (Standard 8.00 X 4.80)   69.00
SPGAL-12 Spare Tire  (Large 12.00 X 4.80)

  99.00

STC Spare Tire Carrier   59.00
WNC Winch with Strap & Hook 159.00






 Wheel Size Options
Two wheel and Tire Sizes are available





Standard 8.00 X 4.80
Actual Height is 16"

Large   is 12.00 X 4.80
 Actual Height is 20"







Additional Options


200-MPK Dual  Kayak Conversion Kit (Two Kayaks) 219.00
RB-KIT Kit includes Set of Two   48" X 6"  Rear Bunks  and Hardware to Replace  Rear Cradle.* 259.00
 SMSK Mast Carrier Set  AM-10+DMMC4  149.00

  NOTE:  Rear Cradle must be removed when installing the RB-KIT.
 The trailer is designed only for a two point support system.







  Bearing Protection System
  Included on Every Trailer

Sure Lube low pressure bearing lubrication system.  Protects bearings and prevents any seal damage.
Easy to use. A Zerk Fitting is located under the axle's end cap. Removing the end cap allows you to use a
small grease gun to lubricate the bearings.
The new grease pushes the old grease out.







SMSK  Mast Carrier Set includes Front Deck Mount Yoke with non-marring feet and a Rear Mast  Carrier Yoke with 3/8" pintles to fit into the Rudder mounting holes

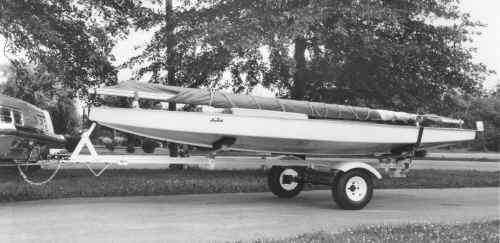

Trailex SUT-200-S Trailer shown with Snark Sunflower

Trailex SUT-200-S shown with Snark Sunflower Sailboat

Trailex SUT-220-S Trailer Shown
With 11' Snark Sunflower Sailboat
  - Trailex SUT-220-S Trailer Has
Dual Submersible Taillights
With Lighted License Plate Holder







Trailex SUT-220-S Trailer Shown
With a 13'-10" Sunfish Sailboat

   The Sunfish Sailboat is a Perfect Fit
 on the Trailex SUT-220-S Trailer





RB-KIT   Optional Rear Support Bunks
Bunks can be Adjusted in Height and Angle, or Spaced Close or Wide



Support Bunks can be Flat

  Angle Bunks to fit Hull Contour


For illustrative purposes :similar Trailex trailer shown  set up with  front cradle and rear bunks

Trailer comes standard with a Front and Rear Cradle.  This option allows you to remove the Rear Cradle and install Dual longitudinal bunks.  RB-KIT  is a Set of Two  48" X 6"  Bunks.   NOTE:  Rear Cradle must be removed when installing this kit.  The trailer is designed only for a two point support system.







Trailex SUT-200-S Trailer with Sportspal Canoe - Launching by Hand Trailex SUT-200-S Trailer with Sportspal Canoe - Launching by Car
Use As A  Dolly
(
Sportspal Canoe Not Included)
  Use As  A Trailer
(
Sportspal Canoe Not Included)

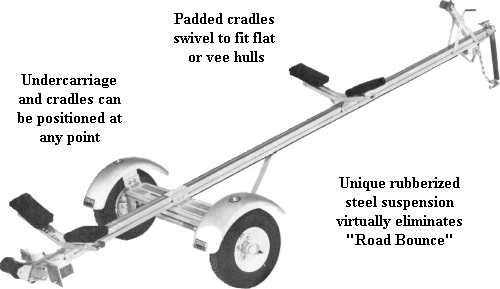

Cradle adjusted for kayak Cradles on SUT-220-S will allow bunks to be adjusted inward to accommodate narrow boat hulls, such as kayaks & Some Sailing Skiffs





Trailex Trailer Has Fully Adjustable Cradles     Trailex Trailer Has Fully Adjustable Cradles     Trailex Trailer Has Fully Adjustable Cradles
Semi Vee Hulls   Adjusts to any Hull   Swivels Flat

Trailer Cradles Adjust  to any Point on the Tongue - Bunks Swivel to  Hulls Contour





Application Information

The Standard  Model SUT-220-S will carry up to a 17' long Sailboat or Boat
such as  Sunfish,  Snark, Phantom, and other similar sailboats

Multi-Carrier Trailers for Small Sailboats are also available - contact us

For greater capacity of up to 350lbs
 see the  Model SUT-350-S Trailer - Click Here



Click Here for Frequently Asked Questions

Trailex Trailer Packaged for UPS Shipment

Typical Trailex Trailer Packaged for FedEx Shipment



Trailex T-bolt

Trailex T-Bolt with nut

  • Patented T-Bolt Construction

  • Fully Adjustable

  • Heads of bolts slide to any position.

  • Requires only one wrench to tighten

  • Lock nuts on all bolts

  • Strong & lightweight

Trailex Extrusion & T-Bolt





Trailex SUT-250M-2 Trailer Video















SUT-220-S
Assembly Instructions
