Trailers For Inflatable Boats
For Zodiac, Mercury Quicksilver, Sea Eagle, Saturn, AB, Avon, Achilles, AMI Advanced Marine, Caribe, Maxxon, Novurania, FSI and Similar Inflatable Boats and RIB

Also for Certain Small Catamarans, Such as
Hobie 12 , Hobie Bravo. Seacycle and Waterbike

Designed for Police, Fire, Rescue Squad and Personal Use
Special Features for Tube, Floor and Motor Support

Why Choose the Trailex Trailex for Inflatable Boats?

These Unique Features:

Completely Adjustable
Large Front Padded Bow Support
Each Tube is Fully Supported on Both Sides
The Outboard Engine is Fully Supported on the Transom.
Lightweight Aluminum - Can be Towed with today's smaller vehicles

MAXIMUM OUTBOARD MOTOR WEIGHT
For Trailex Model SUT-450-I Trailer IS 75 LBS.

UT-450-I Trailer has a manufacturers weight limitation of 75 lbs for an outboard motor. If you exceed that weight it can cause your trailer to "Sway" while being towed, which is dangerous. If you have a larger motor, it would be best to carry it separately from the trailer.

OR --See the UT-850-M Trailer that can carry larger outboards CLICK HERE)

Trailex series of trailers for inflatable boats have epoxy coated leaf springs and hot dipped galvanized axles. The SUT-450-I Trailer Ships via UPS. Since Trailex Trailers are made of aluminum, they are maintenance-free in addition to being strong and lightweight. Trailex's light weight allows towing with today's smaller vehicles.

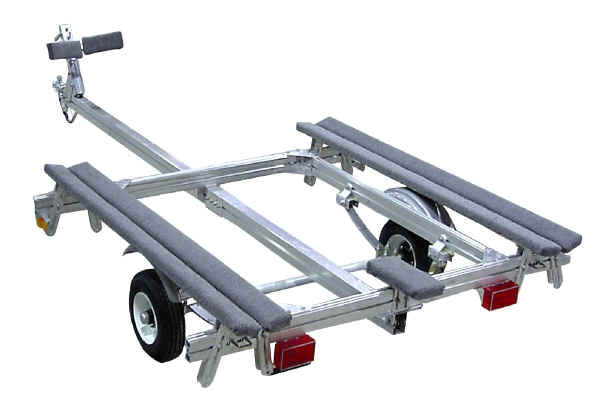

SUT-450-I Specifications		Standard Equipment
Capacity: Weight: Length: Width: Tires: Coupler: Electrical: Maximum :	450 lbs 200 lbs 12'-11" 74" 16" High 1-7/8" Flat 4 prong Outboard Weight cannot exceed 75 Lbs	Submersible Taillights Safety Chain 72" Padded Bunks Adjustable Bow Stop High Impact Plastic Fenders High Speed Demountable Galvanized Wheels & Tires Adjustable Undercarriage Epoxy Coated Springs

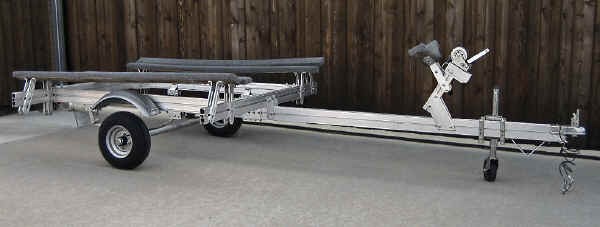

Winch is Available as an Option		Optional Front Parking Jack shown

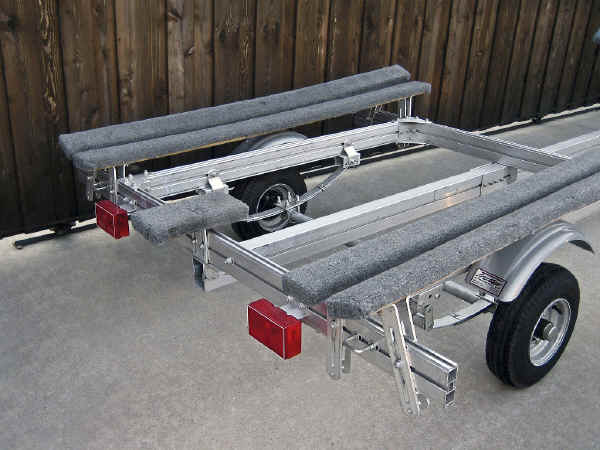

This Photo shows the Bunk Support Detail on the Trailex SUT-450-I Inflatable Boat Trailer. The Inflatable Boat's side tubes are fully supported by the bunks. These bunks are fully adjustable and allow spacing between the bunks for Inflatable Boat's that have inflatable tube keels. The Rear Center Transom Bunk provides Maximum Support for the boat's outboard Motor

Models are available for Numerous Inflatable Boats
Model SUT-450-I will fit the following Models
(SUT-450-I ships via UPS)

MANUFACTURER	MODEL	SIZE

AB	Mares 3.50 I	11'-0" x 5'-4"
Achilles	SGX-122	12'-2" x 5'-4"
AMI	RKS-380	12'-6" x 5'-7"
Avon	Rover R340	11'-2" x 5'-3"
Caribe	C-12	11'-6" x 5'-7"
FSI	F-YRR 385	12'-6" x 5'-7"
Maxxon	CS-390	12'-9" x 5'-6"
Mercury Quicksilver	340	11'-2" x 5'-0"
Mercury Quicksilver	380	12'-6" x 5-'8"
Saturn	SD385	12'-6" x 5'-7"
Sea Eagle FoldCat	375fc	12'-4" x 4'-6"
Sea Eagle	285	9'-0" x 4' -0"
Sea Eagle	SE-12.6	12'-6" x 5'-7"
Zodiac	ERB 310	10'-6" x 5'-3"
Zodiac	G 380 Fire Brigade	12'-6" x 6'0"
Zodiac	MK1 Touring	11'-6" x 5'-3"
Zodiac	MK2C Touring	12-6" x 5'-9"
Zodiac	MK1 Futura	11'-6' x 5'-4"
Zodiac	MK2C Futura	12'-6" x 6'-0"
Zodiac	MK1 Futura Fastroller	11'-6' x 5'-4"
Zodiac	MK2C Futura Fastroller	12'-6" x 5'-10"

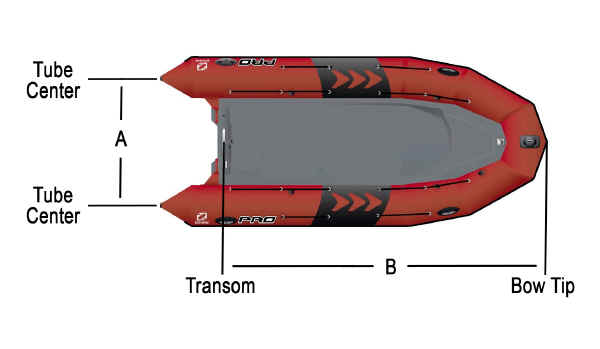

How to Measure Your Boat

A Maximum of 64" Tube Center to Center

B Maximum of 10'-6" Distance from Bow Tip to Transom Support

Adding Tongue Extension EXT-BB allows Dimension "B" to be:

B Maximum of 13'-6" Distance from Bow Tip to Transom Support

SUT-450-I will adjust to fit most smaller models of the above listed boats,
and boats up to a maximum 64" from center of one tube to another. Example: boat is 72" wide total with 18" diameter tubes - subtract the width of one tube to determine centerline = 54" which is within the 64" maximum centerline allowed.

Size Limit on Inflatable Boats - In order to support the Transom, the boat should be no more than 10'-6" ( 13'-6" with Extension EXT-BB) from the Bow Tip of the boat to the Rear Transom. Dimension "B"

It is best to physically measure the boat, however you can compute it approximately by:
EXAMPLE : Boat is 12' Overall length - the inside distance from the inside front to the transom is listed as 8'-0" - Add the Tube Diameter 18" = 9'-6". The Rear Transom Bunk will then position under the transom for support.

Maximum Outboard Motor Weight Limit is 75 lbs

Maximum Total Weight Limit of Boat, Motor & Gear is 450 lb.

See Model UT-850-M for Boats requiring Capacity up to 850 lbs.
Model UT-850-M is Heavy Duty and has Larger, Wider Bunks.
CLICK HERE TO SEE UT-850-M TRAILER

-Small Catamarans -
Such as the Seacycle, Waterbike, Hobie 12 and the Hobie Bravo will also fit on the SUT-450-I Trailer

Model SUT-450-I will Also fit the following Larger Models
With the Addition of Option EXT-BB Tongue Extension
(SUT-450-I ships via UPS)

IMPORTANT NOTE:
Option EXT-BB increases the length of the trailer to 15'-5"
The Maximum Capacity Including Motor Remains at 450 lbs
Maximum Outboard Motor Weight is 75 lbs

MANUFACTURER	MODEL	SIZE

Achilles	SG-140 *	14'-0" x 5'-9"
AMI	RKS-420 *	13'-9" x 6'-2"
Avon	A400 *	13'-3" x 6'-3"
FSI North America	*FYRR-430 See Note #**	14' 0" x 6' 3"
Maxxon	CS-420 *	13'-9" x 6'-0"
Mercury Quicksilver	*430 See Note #**	14'-1" x 6'-2"
Saturn	SD-430 *	14'-0" x 6'-5"
Sea Eagle	SE-14SR *	14'-0" x 6'-2"
Sea Eagle FoldCat	440fc *	14'-3" x 5'-11"
Zodiac	ERB 380 *	12'-9" x 5'-6"
Zodiac	*ERB 400 See Note #**	13'-5" x 6'-3"
Zodiac	ERB-400 * See Note #	13'-2" x 6'-3"
Zodiac	*FC420 See Note #**	13'-9" x 5'-9"
Zodiac	*MK2 Touring See Note #**	13'-9" x 5'-9"
Zodiac	*MK2 Futura See Note #**	13'-9" x 6'-0"
Zodiac	*MK2 Futura Sport See Note #**	13'-9" x 6'-0"
Zodiac	*MK2 Futura Fastroller See Note #**	13'-9" x 6'-0"
Zodiac	MK2 Grand Raid * See Note #	13'-9" x 5'-9"
	*Must order Option EXT-BB

SUT-450-I Optional Extra Equipment
SPGAL	Spare Tire Galvanized	69.00
STC	Spare Tire Carrier	59.00
WNC	Winch with Strap & Hook	159.00
TCBS-6	Twin Center Bunk Supports **	295.00
EXT-BB	Tongue Extension to 15'-5" ***	299.00

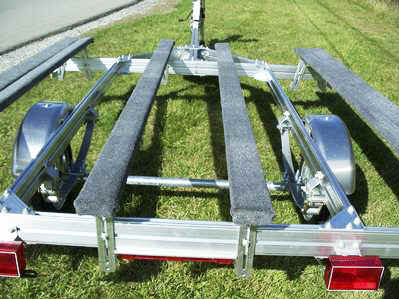

Optional Twin Center Bunks

** Option TCBS is used when you want extra center support because the boat would be transported with gear loaded, or you have a RIB (rigid inflatable boat) and you would like additional center hull support - The Four supplied bunks will adjust to give proper hull support for a RIB and it is not required that you add the center bunks for a RIB, but some users may wish to add them. All Trailers have rear transom supports. Shown with Transom Support Removed - Transom Support can be left installed with the Twin Center Bunks.

*** EXT-BB Tongue Extension to 15'-5" is a longer section of tongue that replaces one of the pre-packed tongue sections in the SUT-450-I package. So you will have an extra tongue section left over, which is not returnable for credit. However, if you ever wish to shorten the trailer, it can be easily adapted with this extra remaining piece.

	Bearing Protection System Included on Every Trailer
	Sure Lube low pressure bearing lubrication system. Protects bearings and prevents any seal damage. Easy to use. A Zerk Fitting is located under the axle's end cap. Removing the end cap allows you to use a small grease gun to lubricate the bearings. The new grease pushes the old grease out.

Optionally, this trailers may be delivered to your location fully assembled, depending on your area. Please contact us for shipping quotes.

Trailex T-Bolt with nut

Patented T-Bolt Construction
Fully Adjustable
Heads of bolts slide to any position.
Requires only one wrench to tighten
Lock nuts on all bolts
Strong & lightweight
