Multiple Sailboat Trailers
Multicarrier Trailers for Sailboats, Boats, and Windsurfers

Trailex Ultralight Aluminum Trailers come with  a One Year Limited Warranty.  Almost 50% lighter than steel trailers and they Never Rust

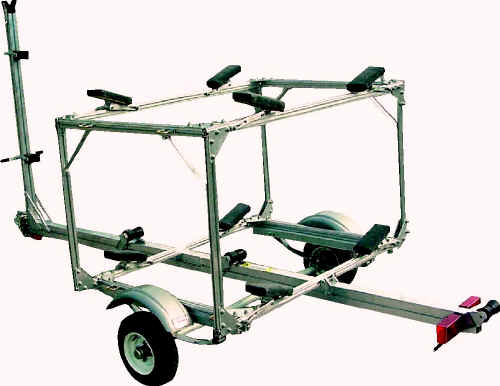

Trailex Model SUT-500-2BC Trailer

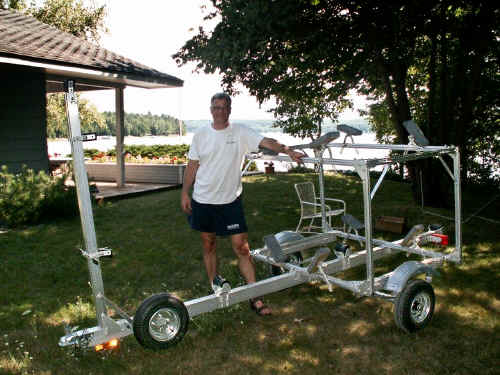

SUT-500-2BC trailer

SHIPS VIA UPS

Model SUT-500-2BC  will carry 2 boats such as Laser, Sunfish, Force 5 Sailboats or similar boats.  Maximum beam of lower boat is 5'-2".  Upper boat can be wider.  Pads are adjustable inward or outward and will swivel flat for carrying boats such as Laser Sailboats upside down.  Has a 60" Mast Stand.  500 lb Capacity.  Trailer is 12' Long and  7' wide.  Can carry 2 small sailboats up to 14'-6" long with a combined weight of 500 lbs

All Aluminum, All Bolted Construction, All Adjustable

Multi Carrier Trailers  have epoxy coated leaf springs, giving them a carrying capacity of up to the listed load ratings.    Since these Trailers are made of aluminum, they are maintenance-free in addition to being strong and lightweight.  These trailers require common carrier or motor freight shipment, and are easily assembled using only simple tools.

Trailex Model UT-400-3LS	Trailex Model UT-400-4LS

Trailex Model UT-400-3LS and UT-400-4LS will carry  3 or 4  respectively, Laser, Sunfish or similar sailboats.   Maximum beam of lower boat is 4'-8" .Upper boat can be wider.  Pads are adjustable inward or outward and will swivel flat for carrying boats such as Laser Sailboats upside down.  600 lb Capacity.  Trailers are 15'-10" Long  and 70" Wide.  Suspension and tires are similar to photo of TX-400-2BC trailer shown above. Vinyl inserts and end caps protect  side mounted boats.

Trailex Model TX-416-6SB Multiple Windsurfer Trailer

Model TX-416-6SB is a smaller version of the UT-1000-6

Model UT-1000-6 is similar to the TX-416-6SB and is shown here for illustrative purposes

Two Models for carrying Multiple Windsurfers are available.  TX-416-6SB (shown) will transport six Windsurfers.  TX-416-8SB (not shown) will transport eight Windsurfers.  Total carrying capacity of either trailer is 500 lbs.  Trailers are 15' long and 5'-10" wide.  Vinyl inserts and end caps protect boats.

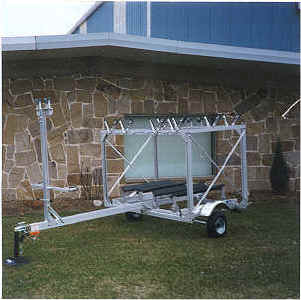

Trailex Model UT-600WTWR Trailer

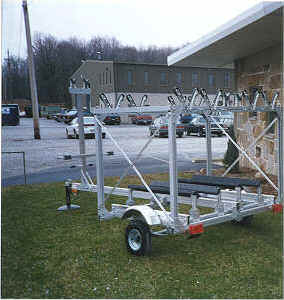

Model UT-600WTWR Carries two Windrider Trimaran Sailboats at a time

Click Here for  Windrider Trailer Specifications

PRICES

Application Information

Model SUT-500-2BC will carry Two Laser, Sunfish, Force 5 or similar sailboats up to 5'-2" wide

 Model UT-400-3LS will carry Three Laser, Sunfish, Force 5 or similar sailboats up to 4'-8" wide.

Model UT-400-4LS will carry Four Laser, Sunfish, Force 5 or similar sailboats up to 4'-8" wide.

Model TX-416-6SB will carry Six windsurfers.

Model TX-416-8SB will carry Eight windsurfers.

Model UT-600WTWR will carry two Windrider 16 Trimaran Sailboats

Assembly Note:  Due to their many components, these trailers require more assembly time and skill levels than our other trailers

These trailers can be shipped via common carrier i.e. motor freight.  The frames are assembled and then wrapped.  Running gear, superstructure, and lighting are boxed.

Patented T-Bolt Construction Fully Adjustable Heads of bolts slide to any position. Requires only one wrench to tighten Lock nuts on all bolts  Strong & lightweight

Click Here for Frequently Asked Questions
