CastleCraft Multiple Canoe Trailer | Trailex Trailers for multiple canoes

Multiple Canoe Trailers
Multiple SUP Trailers
Trailers for transporting multiple canoes or SUP Boards

Trailex Ultra-Light Aluminum Trailers come with a Three Year Limited Warranty. Almost 50% lighter than steel trailers and they Never Rust

Trailex Eight Canoe Trailer

Trailex Multiple Canoe & SUP Trailers have epoxy coated leaf springs and hot dipped galvanized axles. These trailers require common carrier or motor freight shipment, and are easily assembled using only simple tools. Since the Trailex Multiple Canoe & SUP Trailers are made of aluminum, they are maintenance-free in addition to being strong and lightweight. Their light weight allows towing with today's smaller vehicles.

Six Canoe Trailer		12 SUP Trailer

UT-1000-6 Six Canoe Trailer is 3984.00

UT-1000-8 Eight Canoe Trailer is 4248.00

UT-1000-12 Twelve SUP Trailer is CALL

Scroll Down the Page for Details , Available Options

Trailex UT-1000-6 Six Canoe Trailer

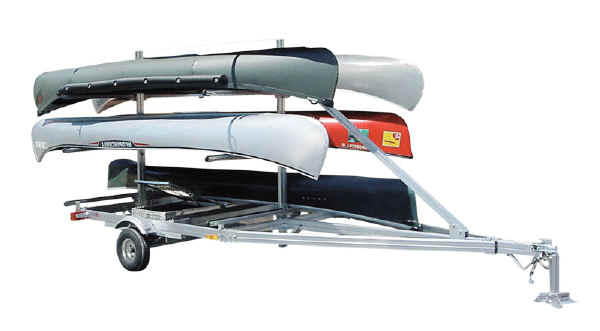

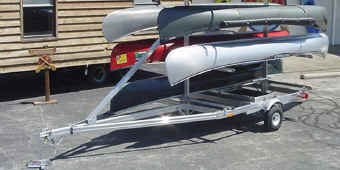

Trailex Model Ut-1000-6 Canoe Trailer with Optional Storage Box (canoes & display stand not included)

Trailex UT-1000-8 Eight Canoe Trailer

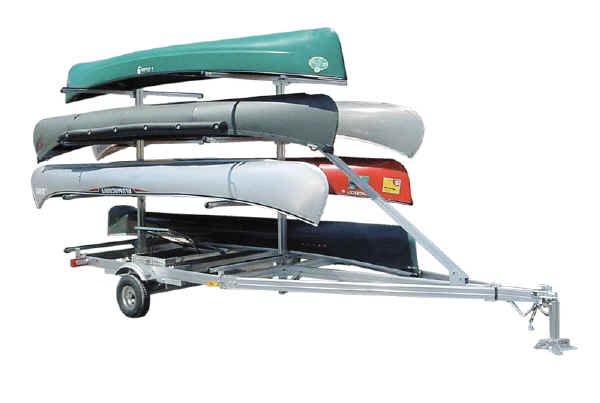

Trailex Model UT-1000-8 Eight Canoe Trailer Shown with options: Storage Box (display stand not included)
The canoe supporting crossbars have special cushioning vinyl extrusions to protect the gunwales when trailering. The ends of all crossbars are protected by vinyl extrusions to eliminate the possibility of damaging a canoe while loading or unloading. The crossbar height is adjustable.

Trailex UT-1000-12 Twelve SUP Trailer

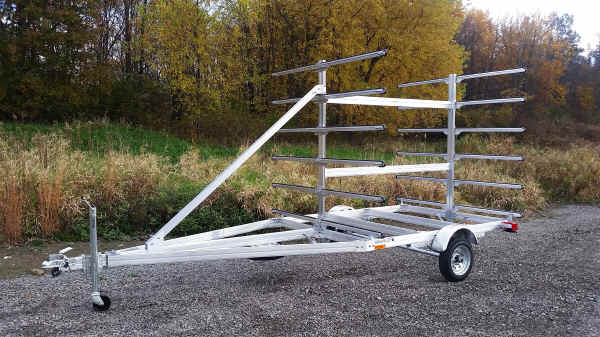

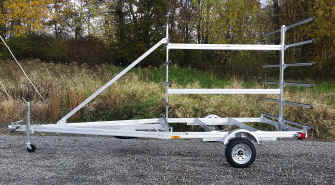

Trailex Model UT-1000-12 Twelve SUP Paddle Board Trailer shown with optional Front Parking Jack This model allows the transport of 12 SUP Boards - each on their own individual arms.*
Note the following: Fore to Aft arm spacing is 7'-8" - Best for at least 10' long paddle boards Vertical spacing is 12" clearance for each SUP 36 Adjustable Web Strap Clips included on UT-1000-12 SUP

Models

Capacity:
Weight:
Length:
Width:
Height:
Crossbars:

Tires:
Coupler:
Electrical:

UT-1000-6
6 Canoes
1000 lbs
305 lbs
17'-5"
7'-4"
6'-8"
7'-8" Spacing
22" Height **
4.80 X 12"
2"
Flat 4 prong

** Adjustable

UT-1000-8
8 Canoes
1000 lbs
340 lbs
17'-5"
7'-4"
8'-3"
7'-8" Spacing
22" Height **
4.80 X 12"
2"
Flat 4 prong

Federal Highway Regulation Lighting
Safety Cables
Adjustable Web Strap Clips
(18 on UT-1000-6 - 24 on UT-1000-8)
Padded Arms
Tongue Skid
Adjustable Crossbars
Crossbar and End Vinyl Extrusions
High Speed Demountable Galvanized Wheels & Tires
Adjustable Undercarriage
Epoxy Coated Springs
Galvanized Wheels


TXBX-C Storage Box- Up to two of these boxes can be installed on the trailers. Box is 67.5" L x 22" W x 11" D. Also made from aluminum, it is handy for paddles and life jackets. The second box requires an additional mounting kit BMK-2.

An optional aluminum storage box is available for paddles and life jackets. The box is recessed in the center cavity of the trailer. The lid has a center hinge which permits entry from both sides of the trailer. The box is 67.5" L X 22" W X 11" D. Up to two additional boxes may be added

Optional Extra Equipment
STC	Spare Tire Carrier	59.00
JACK-HD	Adjustable Front Parking Jack	149.00
12GAL	480 X 12" Spare Tire- Galvanized	99.00
TXBX-C	Storage Box 67.5" X 22" W X 11" D	1186.00
BMK-2	Mounting Kit for Second TXBX-C	59.00
FWSC	Package of Four (4) Extra Web Strap Clips ( For Attaching Strap End Hooks)	29.00

	Bearing Protection System Included on Every Trailer
	Sure Lube low pressure bearing lubrication system. Protects bearings and prevents any seal damage. Easy to use. A Zerk Fitting is located under the axle's end cap. Removing the end cap allows you to use a small grease gun to lubricate the bearings. The new grease pushes the old grease out.

FWSC Option		Set of Four Clips
Optional Tie Down points for Web Straps or Bungee Cords - Use to add extra tie down points to secure boat. Easily adjusts to any position by sliding.		FWSC Option includes Four Sliding Square Eyebolts. These can be installed on any side of a member on the unit that has a slot and then locked in place by tightening the nuts.

NOTE These Trailers comes with Multiple Web Strap Clips already included -Please See the Specifications Chart for the exact number of clips provided.

Optionally, these trailers may be delivered to your location fully assembled, depending on your area. Please contact us for shipping quotes.

Trailex T-Bolt with nut

Patented T-Bolt Construction
Fully Adjustable
Heads of bolts slide to any position.
Requires only one wrench to tighten
Lock nuts on all bolts
Strong & lightweight

Multiple Canoe Trailer models can be also used to carry Kayaks as long as the kayak is long enough to be properly supported by the distance between the crossbars. This also allows mixing and matching canoes and kayaks on a single trailer. Multiple Kayak Trailers also available.
